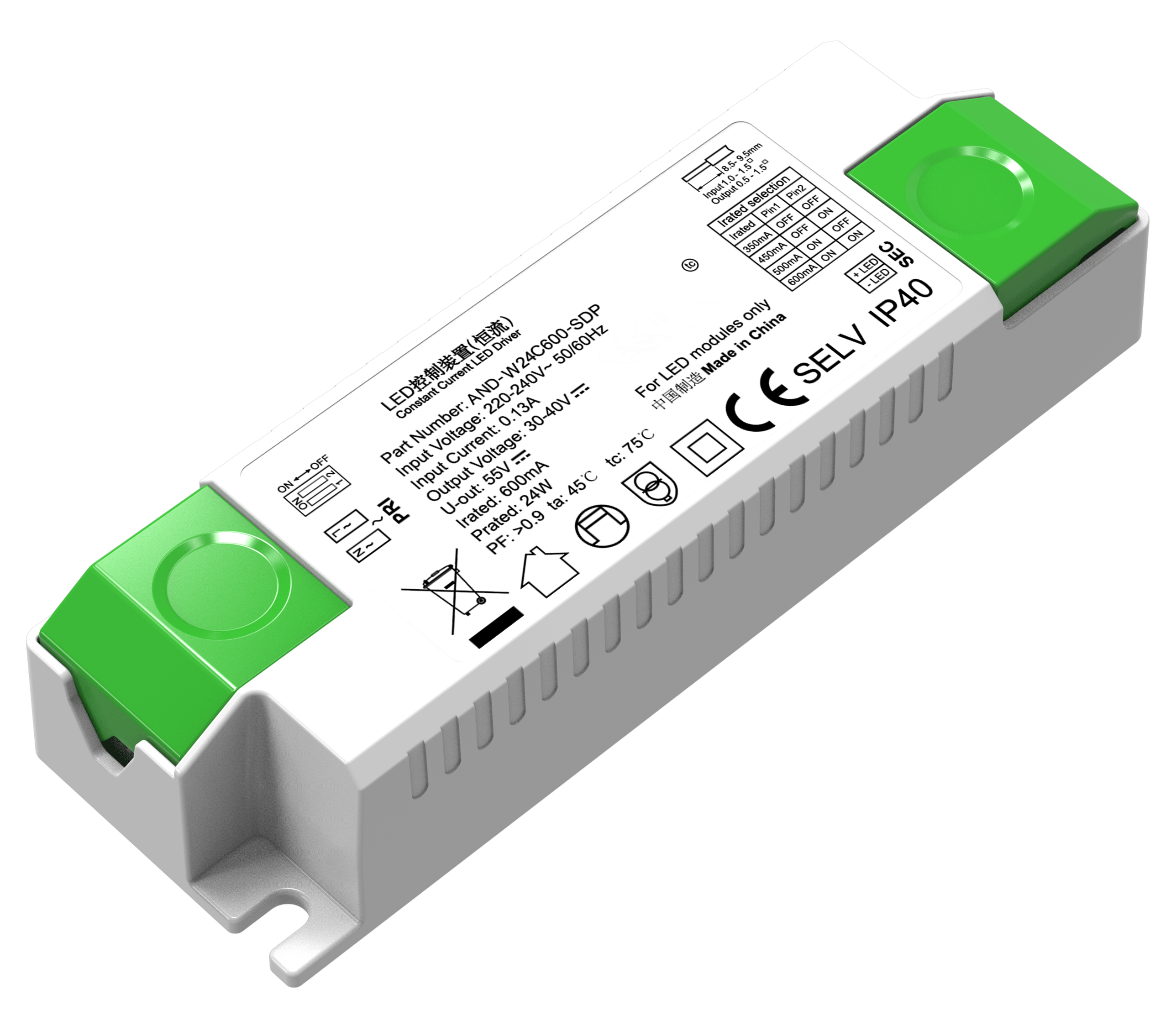

■ SDP series / 8-24W

Product Feature

Output Power Range: 8-24W
Mode: CC Isolation Flicker-free
Type: Plastic clad structure, IP40
Protection: No-Load / Short Circuit / Overload/SELV / ClassⅡ

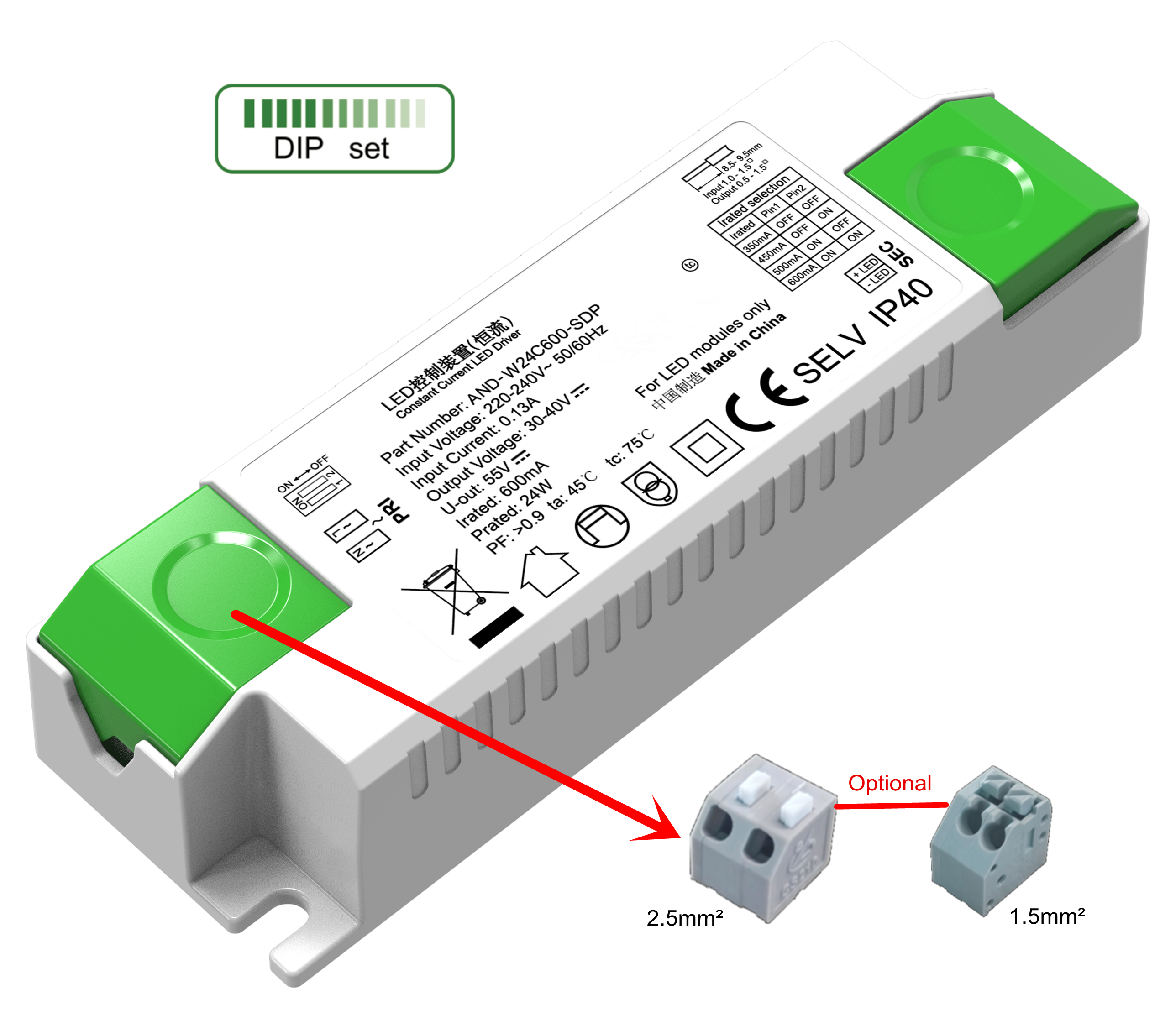

Current selection 4 steps, by DIP
Surge protection: 1.5KV
Start time:≤0.5s (230VAC, full load)
Ambient Temp: -20-45℃
Storage Temp: -25-60℃
Warranty: 5 Years

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current Range	Efficiency	PF	Size (mm) (LWH)
AND-W8C220-SDP	8W	220-240Vac	30-40V	0.11/0.15/0.18/0.22A	≥88%	≥0.95	1153823
AND-W14C350-SDP	14W	220-240Vac	30-40V	0.21/0.25/0.3/0.35A	≥88%	≥0.95	1153823
AND-W24C600-SDP	24W	220-240Vac	30-40V	0.45/0.5/0.55/0.6A	≥88%	≥0.95	1153823

■ Application :

Panel light, Recessed light, Track light, Spotlights

■ Safety Certification:
