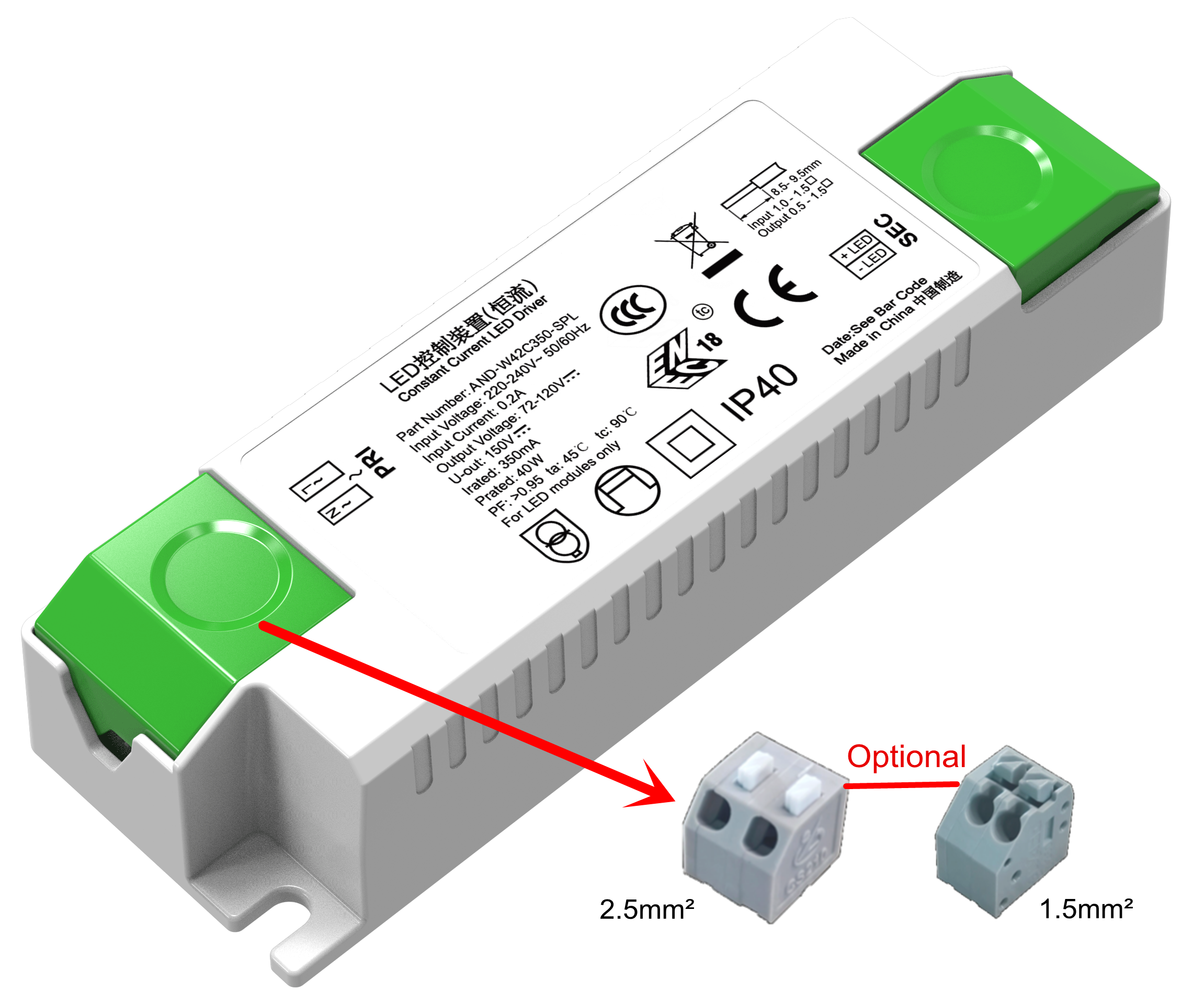

■ SPL series / 20-42W

Product Feature

Output Power Range: 20-42W
Mode: CC Isolation Flicker-free
Type: Plastic clad structure, IP40
Protection: No-Load / Short Circuit / Overload/SELV / ClassⅡ
THD: <5%
Surge protection: 1.5KV
Start time:≤0.5s (230VAC, full load)
Ambient Temp: -20-45℃
Storage Temp: -25-60℃
Warranty: 5 Years

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current Range	Efficiency	PF	Size (mm) (LWH)
AND-W20C350-SPL	20W	220-240Vac	33-55V	0.35A	≥89%	≥0.95	1153823
AND-W42C350-SPL	42W	220-240Vac	72-120V	0.35A	≥89%	≥0.95	1153823
AND-W25C600-SPL	25W	220-240Vac	24-42V	0.6A	≥89%	≥0.95	1153823
AND-W27C650-SPL	27W	220-240Vac	24-42V	0.65A	≥89%	≥0.95	1153823
AND-W29C700-SPL	29W	220-240Vac	24-42V	0.7A	≥89%	≥0.95	1153823
AND-W32C750-SPL	32W	220-240Vac	24-42V	0.75A	≥89%	≥0.95	1153823
AND-W34C800-SPL	34W	220-240Vac	24-42V	0.8A	≥89%	≥0.95	1153823
AND-W36C850-SPL	36W	220-240Vac	24-42V	0.85A	≥89%	≥0.95	1153823
AND-W38C900-SPL	38W	220-240Vac	24-42V	0.9A	≥89%	≥0.95	1153823
AND-W40C950-SPL	40W	220-240Vac	24-42V	0.95A	≥89%	≥0.95	1153823
AND-W40C1000-SPL	40W	220-240Vac	24-40V	1.0A	≥89%	≥0.95	1153823
AND-W40C1050-SPL	40W	220-240Vac	24-38V	1.05A	≥89%	≥0.95	1153823

■ Application :

Panel light, Recessed light, Track light, Spotlights

■ Safety Certification:
