■ DOC Series / 200-240W

Product Feature

Output Power Range: 200-240W
Mode: Mode: CC Non-isolation
Type: Metal clad structure, IP65
3 in1 dimming function: 0-10V PWM Resistor
Isolated auxiliary source (X version optional): 12V/0.2A
Surge protection level: DM 6 kV, CM 6 kV
Protection: Short circuit / over temperature/ input under voltage / Output over voltage / Dimming interface over voltage
Output current can be adjusted externally
Warranty: 5 Years

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current Io Range (Default)	Efficiency	Power Factor	Size (mm) (D*H)
AND-W200V266A-DOC	200W	120-277Vac	180-266V	0.752-1.0A(1.0A)	≥96%	≥0.97	128*62.5
AND-W200V266S-DOC	200W	120-277Vac	180-266V	0.752-1.0A(1.0A)	≥96%	≥0.97	128*62.5
AND-W200V266X-DOC	200W	120-277Vac	180-266V	0.752-1.0A(1.0A)	≥96%	≥0.97	128*62.5
AND-W240V266A-DOC	240W	120-277Vac	180-266V	0.902-1.2A(1.2A)	≥96%	≥0.97	128*62.5
AND-W240V266S-DOC	240W	120-277Vac	180-266V	0.902-1.2A(1.2A)	≥96%	≥0.97	128*62.5
AND-W240V266X-DOQ	240W	120-277Vac	180-266V	0.902-1.2A(1.2A)	≥96%	≥0.97	128*62.5

A Version (potentiometer current regulation)
S Version (3-in-1 dimming)
X Version (12V + 3-in-1 dimming)

■ Application :

High bay light

■ Safety Certification:

Products Recommended

Isolated Flicker-free
Current selection 4 steps
Class I, Class II, SELV

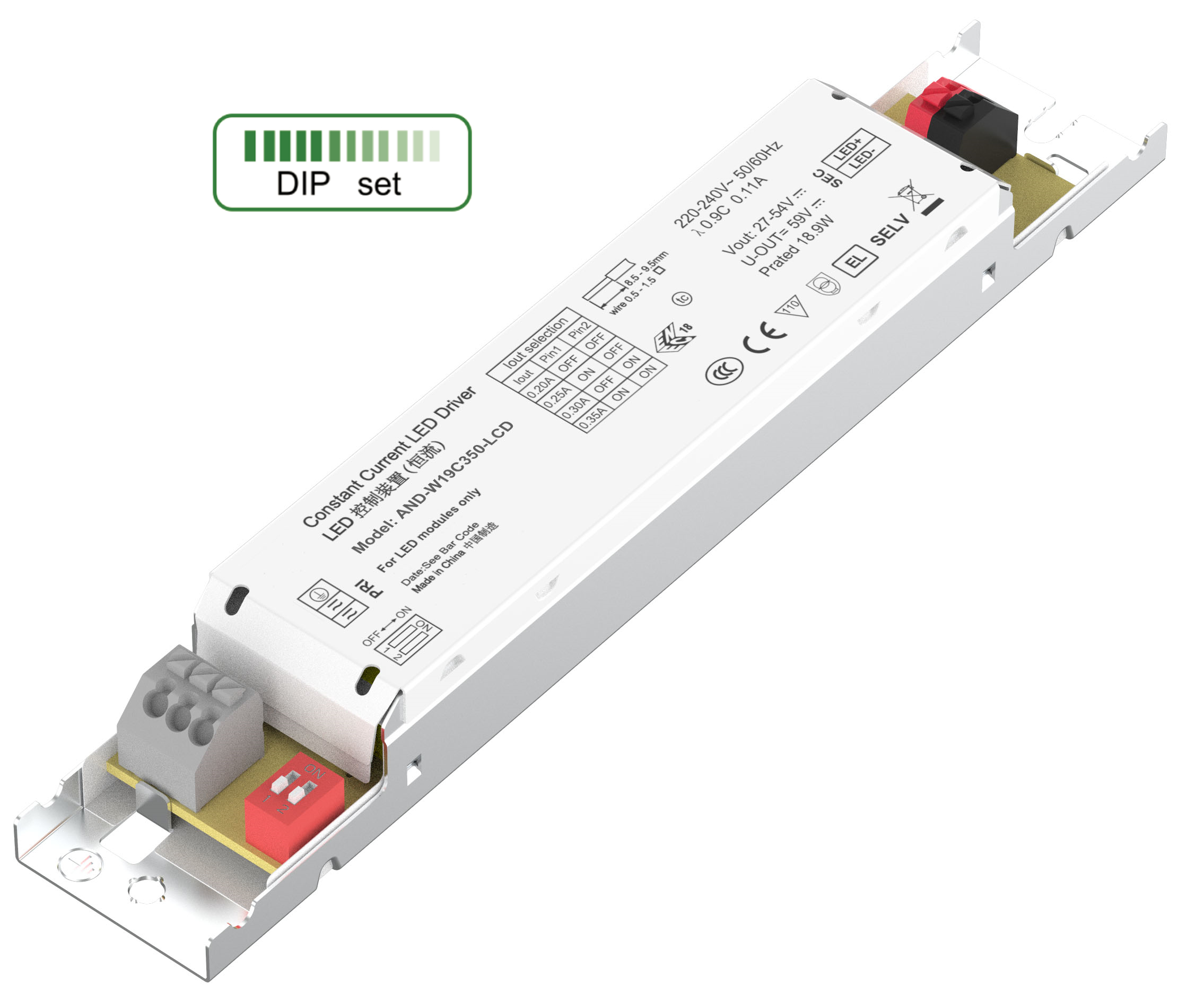

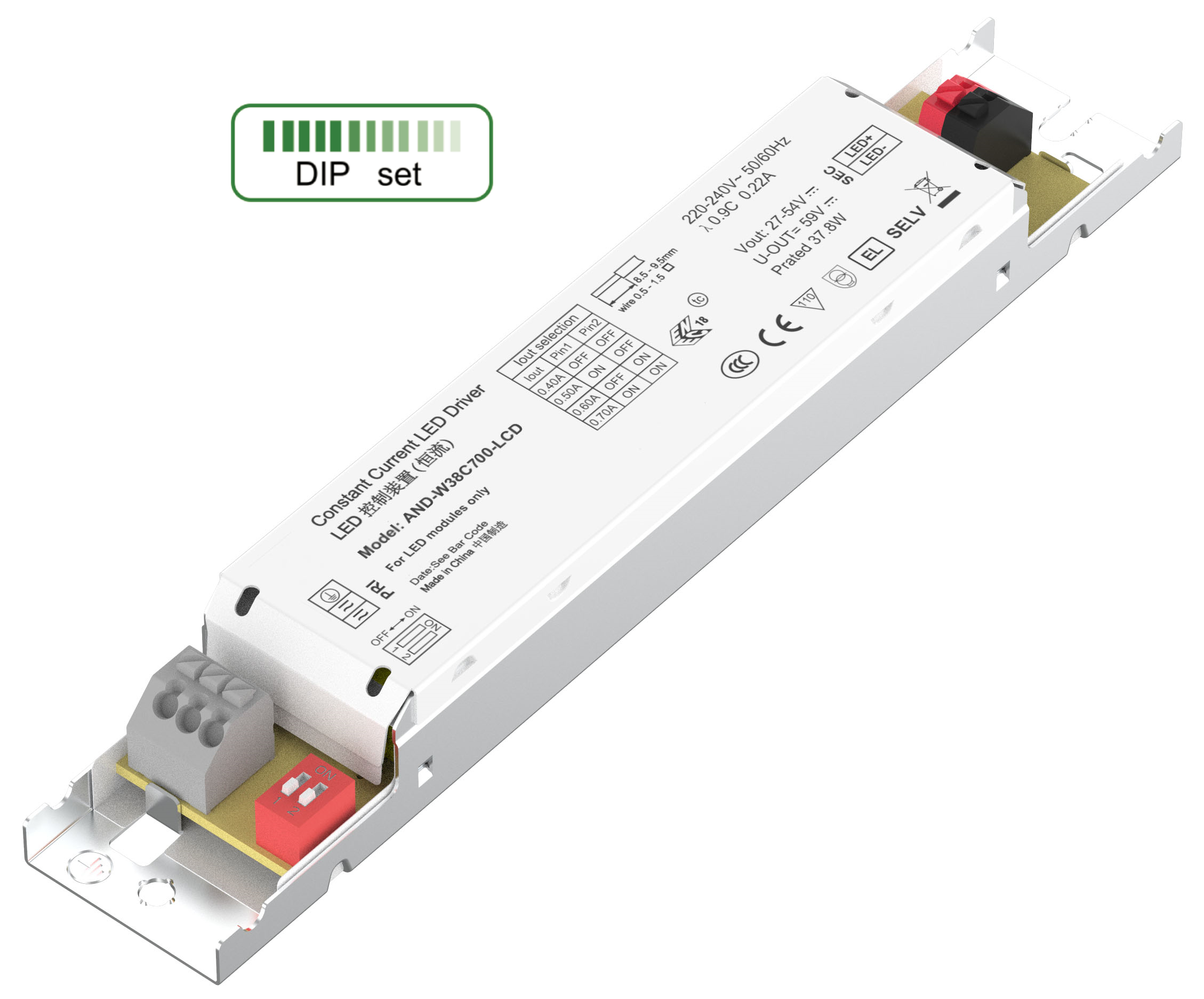

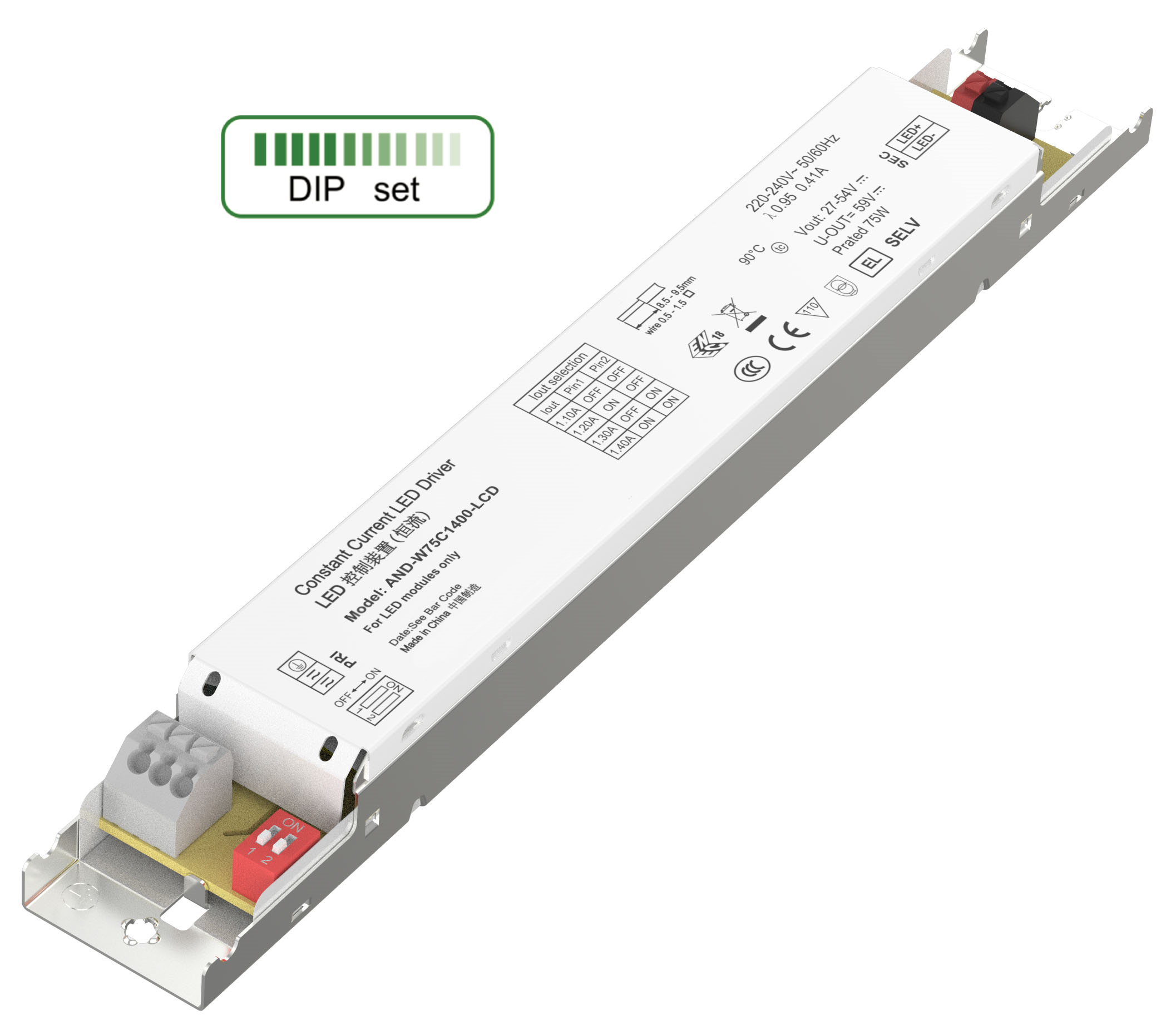

LCD Series / 19-75W
