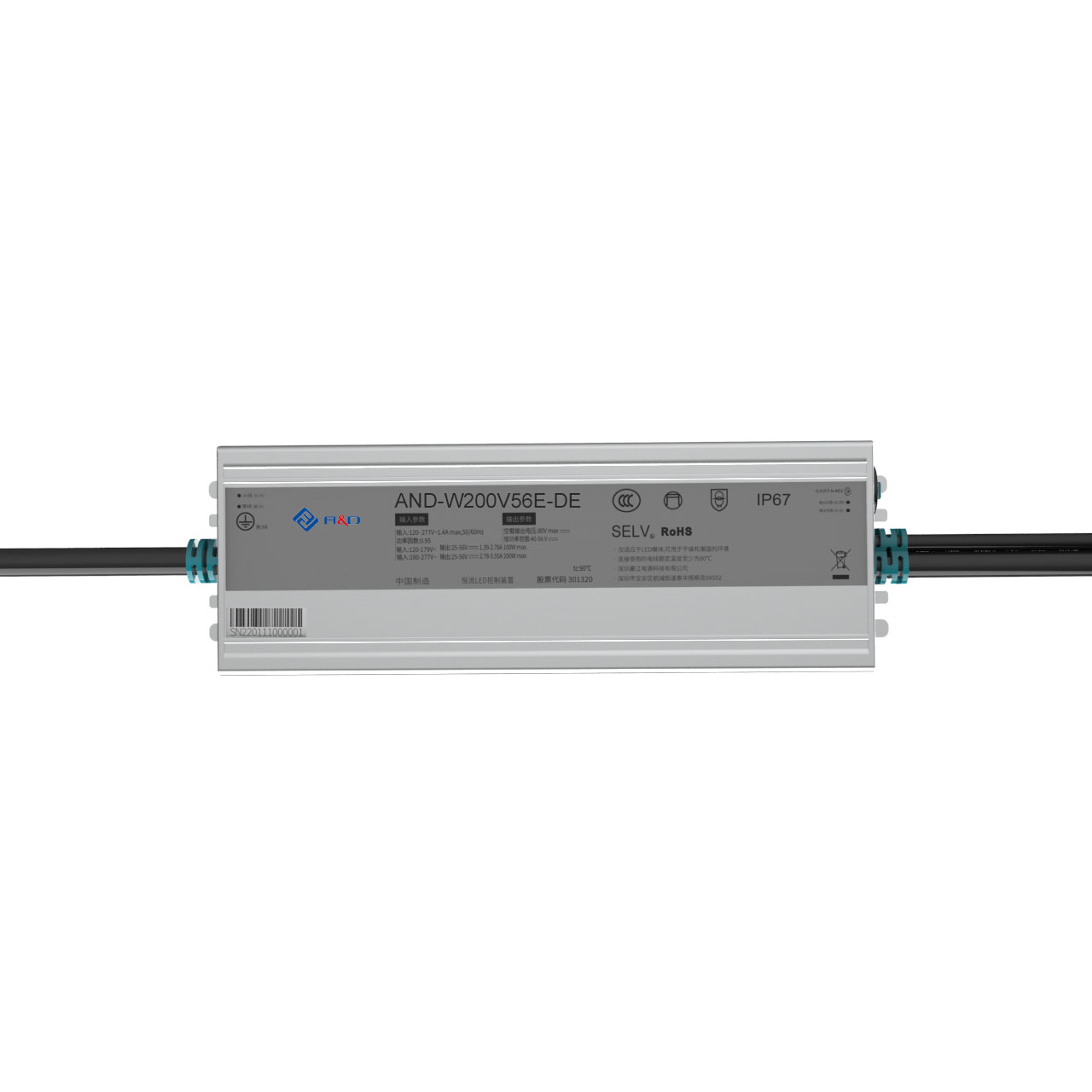

■ DE series / 50-320W

Product Feature

Output Power Range: 50-320W
Mode: Constant Current IP67
3 in1 dimming function: 0-10V PWM Resistor
Dim to off function
T.H.D＜10%
Surge protection level: DM 6 kV, CM 10 kV
Protection: Short circuit / over temperature/ input under voltage / Output over voltage
Output current can be adjusted externally
Warranty: 5 Years

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current Io Range (Default)	Efficiency	Power Factor	Size (mm) (LWH)
AND-W50V56A-DE	50W	120-277Vac	25-56V	0.7-1.4A(1.04A)	≥89%	≥0.97	12143.327.4
AND-W50V56S-DE	50W	120-277Vac	25-56V	0.7-1.4A(1.04A)	≥89%	≥0.97	12143.327.4
AND-W50V56R-DE	50W	120-277Vac	25-56V	0.7-1.4A(1.04A)	≥89%	≥0.97	12143.327.4
AND-W75V56A-DE	75W	120-277Vac	25-56V	1.05-2.1A(1.56A)	≥89%	≥0.97	14043.327.4
AND-W75V56S-DE	75W	120-277Vac	25-56V	1.05-2.1A(1.56A)	≥89%	≥0.97	14043.327.4
AND-W75V56R-DE	75W	120-277Vac	25-56V	1.05-2.1A(1.56A)	≥89%	≥0.97	14043.327.4
AND-W100V56A-DE	100W	120-277Vac	25-36V	1.38-2.78A(2.08A)	≥90%	≥0.97	1856332
AND-W100V56S-DE	100W	120-277Vac	25-56V	1.38-2.78A(2.08A)	≥90%	≥0.97	1856332
AND-W100V56R-DE	100W	120-277Vac	25-56V	1.38-2.78A(2.08A)	≥90%	≥0.97	1856332
AND-W150V56A-DE	150W	120-277Vac	25-56V	2.08-4.16A(3.12A)	≥90%	≥0.97	1856332
AND-W150V56S-DE	150W	120-277Vac	25-56V	2.08-4.16A(3.12A)	≥90%	≥0.97	1856332
AND-W150V56R-DE	150W	120-277Vac	25-56V	2.08-4.16A(3.12A)	≥90%	≥0.97	1856332
AND-W200V56A-DE	200W	120-277Vac	25-56V	2.78-5.55A(4.16A)	≥92%	≥0.97	1986332
AND-W200V56S-DE	200W	120-277Vac	25-56V	2.78-5.55A(4.16A)	≥92%	≥0.97	1986332
AND-W200V56R-DE	200W	120-277Vac	25-56V	2.78-5.55A(4.16A)	≥92%	≥0.97	1986332
AND-W240V56A-DE	240W	120-277Vac	25-56V	3.0-6.0A(4.3A)	≥93%	≥0.97	2066332
AND-W240V56S-DE	240W	120-277Vac	25-56V	3.0-6.0A(4.3A)	≥93%	≥0.97	2066332
AND-W240V56R-DE	240W	120-277Vac	25-56V	3.0-6.0A(4.3A)	≥93%	≥0.97	2066332
AND-W320V56A-DE	320W	120-277Vac	25-36V	4.0-8.0A(6.66A)	≥93%	≥0.97	2066332
AND-W320V56S-DE	320W	120-277Vac	25-56V	4.0-8.0A(6.66A)	≥93%	≥0.97	2066332
AND-W320V56R-DE	320W	120-277Vac	25-56V	4.0-8.0A(6.66A)	≥93%	≥0.97	2066332
