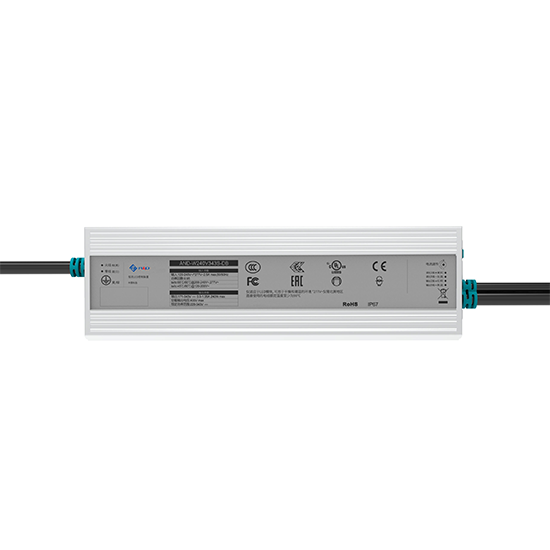

■ DPB series / 100-320W

Product Feature

Output Power Range: 100-320W
Mode: Constant Current IP67
T.H.D＜9%
3 in1 dimming function: 0-10V PWM Resistor
Dim to off function
Auxiliary source: 12V 0.25A
Surge protection level: DM 6 kV, CM 20 kV
Protection: Short circuit / over temperature/ input under voltage / Output over voltage / Dimming interface over voltage
The Output current can be adjusted by external potentiometer or NFC programming.
Warranty: 5 Years (320W, 7 years)

■ Product Parameter:

Model	Power	Input Voltage	Output Voltage	Output Current Io Range (Default)	Efficiency	Power Factor	Size (mm) (LWH)
AND-W100V56A-DPB	100W	120-277Vac	25-56V	1.3-2.8A(1.8A)	≥91%	≥0.97	1525627
AND-W100V56X-DPB	100W	120-277Vac	25-56V	1.3-2.8A(1.8A)	≥91%	≥0.97	1525627
AND-W100V143A-DPB	100W	120-277Vac	71-143V	0.5-1.05A(0.7A)	≥92%	≥0.97	1525627
AND-W100V143X-DPB	100W	120-277Vac	71-143V	0.5-1.05A(0.7A)	≥92%	≥0.97	1525627
AND-W150V56A-DPB	150W	120-277Vac	25-56V	2.67-4.17A(2.67A)	≥91.5%	≥0.97	1856332
AND-W150V56X-DPB	150W	120-277Vac	25-56V	2.67-4.17A(2.67A)	≥91.5%	≥0.97	1856332
AND-W150V214A-DPB	150W	120-277Vac	95-214V	0.7-1.05A(0.7A)	≥92.5%	≥0.97	1856332
AND-W150V214X-DPB	150W	120-277Vac	95-214V	0.7-1.05A(0.7A)	≥92.5%	≥0.97	1856332
AND-W200V56A-DPB	200W	120-277Vac	25-56V	2.6-5.6A(3.57A)	≥92%	≥0.97	1986332
AND-W200V56X-DPB	200W	120-277Vac	25-56V	2.6-5.6A(3.57A)	≥92%	≥0.97	1986332
AND-W200V286A-DPB	200W	120-277Vac	143-286V	0.5-1.05A(0.7A)	≥93%	≥0.97	1986332
AND-W200V286X-DPB	200W	120-277Vac	143-286V	0.5-1.05A(0.7A)	≥93%	≥0.97	1986332
AND-W240V56A-DPB	240W	120-277Vac	25-56V	4.3-6.7A(5.0A)	≥93%	≥0.97	1986332
AND-W240V56X-DPB	240W	120-277Vac	25-56V	4.3-6.7A(5.0A)	≥93%	≥0.97	1986332
AND-W240V343A-DPB	240W	120-277Vac	171-343V	0.7-1.05A(0.7A)	≥94.5%	≥0.97	1986332
AND-W240V343X-DPB	240W	120-277Vac	171-343V	0.7-1.05A(0.7A)	≥94.5%	≥0.97	1986332
AND-W320V56A-DPB	320W	120-277Vac	25-56V	5.7-8.88A(6.6A)	≥94%	≥0.97	2378342
AND-W320V56X-DPB	320W	120-277Vac	25-56V	5.7-8.88A(6.6A)	≥94%	≥0.97	2378342
AND-W320V457A-DPB	320W	120-277Vac	228-457V	0.7-1.1A(0.7A)	≥95%	≥0.97	2378342
AND-W320V457X-DPB	320W	120-277Vac	228-457V	0.7-1.1A(0.7A)	≥95%	≥0.97	2378342
