>Input voltage(100VAC to 305VAC)
> Built-in active PFC function.
> Output Ripple <1 %, Galvanic Isolation
> IP65/IP67 rating for indoor or outdoor installations.
> Function options: fixed output; output adjustable via potentiometer, 3 in 1 dimming.
> Typical Lifetime > 50000hours
| AC input voltage range | AC100-305V |
| Rated Power (max) | 75W |
| Output Voltage | 110-215V |
| Output Current | 350mA Regulation by potentionmeter |
| Short circuit protection | Auto recovery mode |
| Dielectric withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Operation temperature | -40 ～+55℃ @ full load ; +70℃ @ 60% load |
| Safety standard |
UL1012 ; EN61347-1, EN61347-2-13 independent Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV)
|
| EMC standard |
EN55015, EN55022 (CISPR22) Class B EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024 |
| Size | 157*46*32mm (L*W*H), 430g/pc |
| Model | Output voltage | Output current | Current tolerance | Efficiency | PF |
|---|---|---|---|---|---|

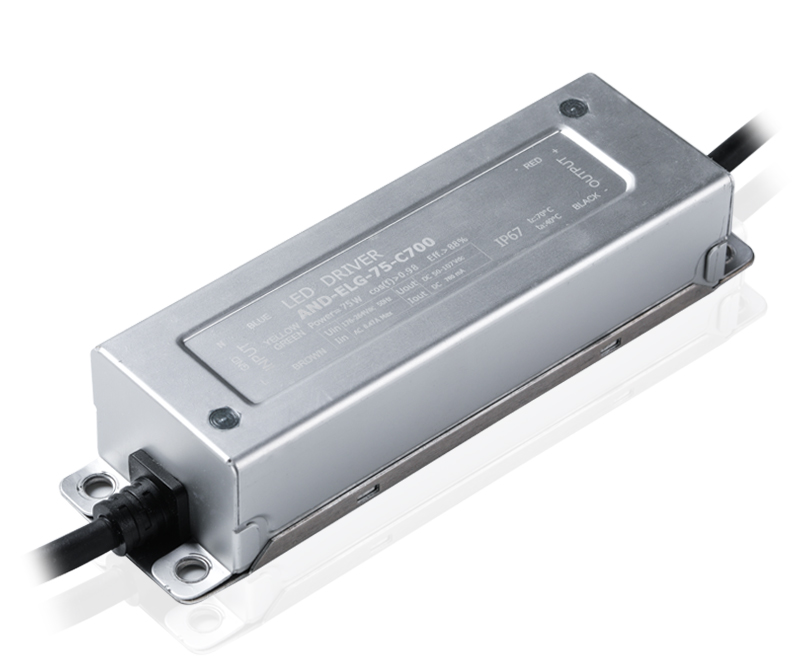

| AND-ELG-75-C700 | 50-107V | 700mA | ±3% | ≥90% | ≥0.98 |
| AND-ELG-75-C500 | 75-150V | 500mA | ±3% | ≥90% | ≥0.98 |
| AND-ELG-75-C350 | 110-215V | 350mA | ±3% | ≥90% | ≥0.98 |
