| AC input voltage range | AC198-264V |
| Rated Power | 75W |
| Output Voltage | 90-216V |
| Output Current | 350/400/500/550mA |
| Short circuit protection | Auto recovery mode |
| Dielectric withstand voltage | I/P O/P -FG:1KVAC |
| Operation temperature | -20 ～+55℃ @ full load |
| Safety standard |
UL1012 ; EN61347-1, EN61347-2-13 independent UL60950-1, TUV EN60950-1 (TBD) CQC/CCC: GB 19510.14-2009 Surge: IEC/EN61000-4-5 |
| EMC standard |
EN55015, EN55022 (CISPR22) Class B EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024 |
| Size | Metal: 210*30*21mm (L*W*H) |
| Model | Output voltage | Output current | Current tolerance | Efficiency | PF |
|---|---|---|---|---|---|

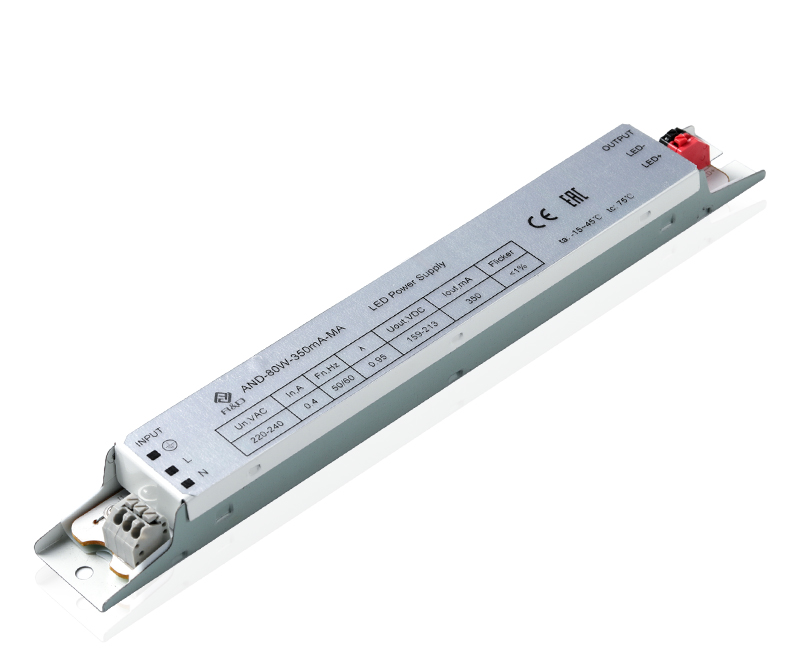

| AND-75W350N-M1 | 90-216V | 350/400/500/550mA | ±5% | ≥94% | ≥0.95 |
| AND-80W700N-M1 | 70-115V | 700mA | ±5% | ≥90% | ≥0.95 |
|
|
|
|
|
