Xiamen AIENDI Technology Co Ltd.
Xiamen AIENDI Technology Co Ltd.
| AC input voltage range | AC90-264V |
| Inrush current (max) | <600mA/230VAC |
| Output Voltage | 60-110V |
| Output Current | 350mA |
| Short circuit protection | Auto recovery mode |
| Dielectric withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
| Operation temperature | -30 ～+55℃ @ full load ; +70℃ @ 60% load |
| Safety standard |
UL1012 ; EN61347-1, EN61347-2-13 independent UL60950-1, TUV EN60950-1 (TBD) CQC/CCC: GB 19510.14-2009 Surge: IEC/EN61000-4-5 |
| EMC standard |
EN55015, EN55022 (CISPR22) Class B EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024 |
| Size | Plastic:153*36*26mm (L*W*H) |
| Model | Output voltage | Output current | Current tolerance | Efficiency | PF |
|---|---|---|---|---|---|
| AND038-070-IC6 | 35-56V | 700mA | ±3% | ≥86% | ≥0.92 |
| AND038-050-IC6 | 50-80V | 500mA | ±3% | ≥87% | ≥0.92 |

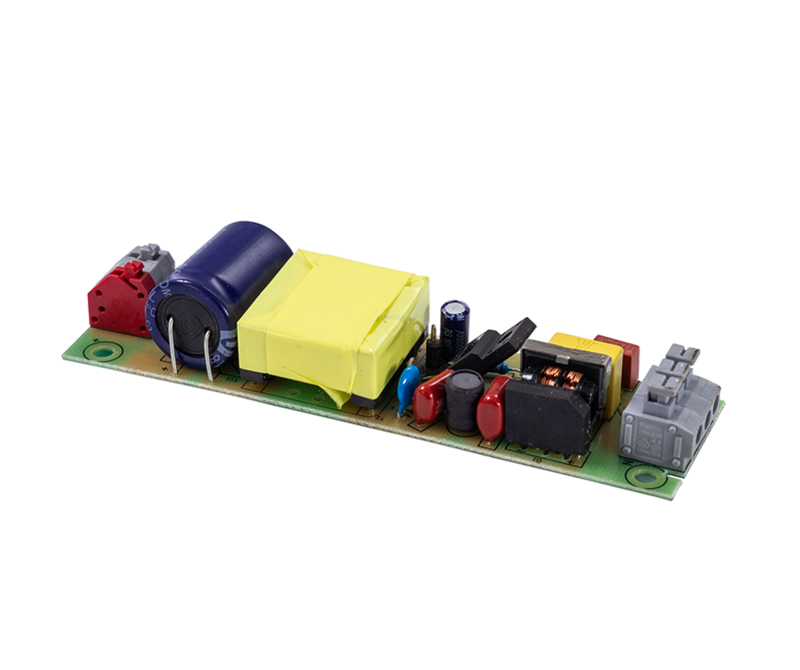

| AND038-035-IC6 | 60-110V | 350mA | ±3% | ≥88% | ≥0.92 |
