| AC input voltage range | AC150-300V |
| Rated Power (max) | 120W |
| Output Voltage | 90-150V |
| Output Current | 500-1250mA Regulation by potentionmeter |
| Short circuit protection | Auto recovery mode |
| Dielectric withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Operation temperature | -40 ～+55℃ @ full load ; +70℃ @ 60% load |
| Safety standard |
UL1012 ; EN61347-1, EN61347-2-13 independent UL60950-1, TUV EN60950-1 (TBD) CQC/CCC: GB 19510.14-2009 Surge: IEC/EN61000-4-5 |
| EMC standard |
EN55015, EN55022 (CISPR22) Class B EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024 |

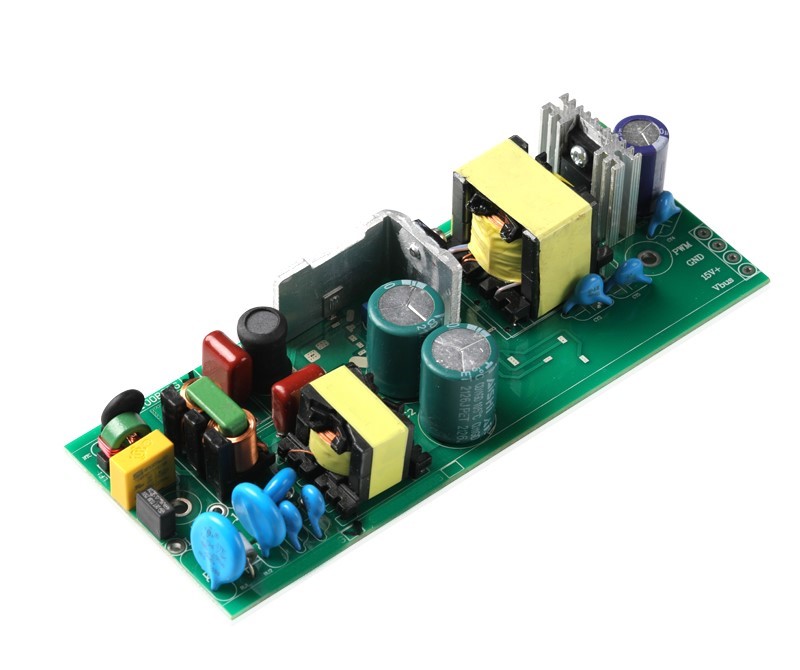

| Size | PCB: 150*58*30mm (L*W*H) |
| Model | Output voltage | Output current | Current tolerance | Efficiency | PF |
|---|---|---|---|---|---|
| AND-OP-120W700 | 90-150V | 700mA | ±3% | ≥90% | ≥0.97 |
| AND-OP-120W800 | 90-150V | 800mA | ±3% | ≥90% | ≥0.97 |
| AND-OP-120W120 | 90-150V | 1200mA | ±3% | ≥90% | ≥0.97 |
