| AC input voltage range | AC90-305V, 127VDC-400VDC |
| Inrush current (max) | 30A/230VAC |
| Output Voltage | 100-143V |
| Output Current | 1.05~1.5A |
| Short circuit protection | Auto recovery mode |
| Dielectric withstand voltage | I/P-O/P:3750VAC, I/P-FG:2000VAC |
| Operation temperature | -40℃~+70℃ |
| Safety standard |
CE: EN61347-1:2008+A1:2011,EN61347-2-13:2006 TUV: EN61347-1/A1:A1:2011, EN61347-2-13:2006, EN62493:2010 CQC/CCC: GB 19510.14-2009 Surge: IEC/EN61000-4-5 |
| EMC standard |
CE: EN55015:2006+A1:2007+A2:2009 RE: EN55015：2006+A1：2007+A2：2009 |

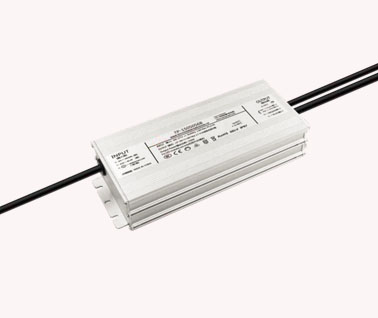

| Size | All-aluminum:167*68*36.5mm (L*W*H) |
| Model | Output voltage | Output current | Current tolerance | Efficiency | PF |
|---|---|---|---|---|---|
| AND-TP-150S042Y | 27-42V | 3.5~5A | ±3% | ≥92% | ≥0.95 |
| AND-TP-150S108Y | 72-108V | 1.04~1.39A | ±3% | ≥92% | ≥0.95 |
| AND-TP-150S214Y | 143-214V | 0.7~1.05A | ±3% | ≥92% | ≥0.95 |
