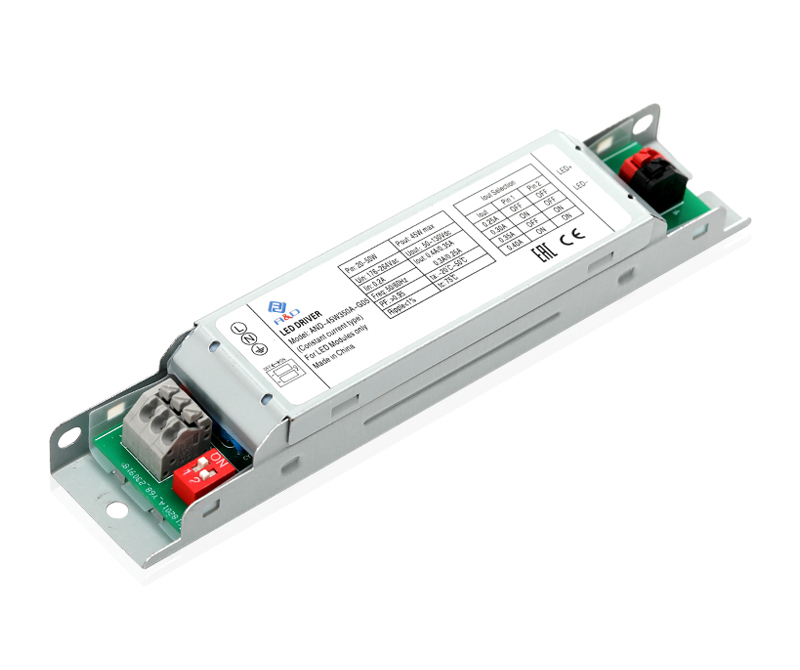

■ AND-45W350A-G05

Product characteristics:

>High input voltage(176VAC to 264VAC)
> Protections: SCP/OLP/OVP

> Output Ripple <1 %

> Galvanic Isolation

> Efficiency> 89%

> Power Factor≥0.95

> Output current regulation (dimming): DIP switch

>Surge protection: 3KV (L/N-G)

>5 years' warranty

■ Application:

LED Panel light, tri-proof light, linear light

■ Specification:

AC input voltage range	AC176-264V
Rated Power	45W
Output Voltage	65-130V
Output Current	250/300/350/400mA Regulation by DIP Switch
Short circuit protection	Auto recovery mode
Dielectric withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Operation temperature	-20 ～+55℃ @ full load
Safety standard	UL1012 ; EN61347-1, EN61347-2-13 independent UL60950-1, TUV EN60950-1 (TBD) CQC/CCC: GB 19510.14-2009 Surge: IEC/EN61000-4-5
EMC standard	EN55015, EN55022 (CISPR22) Class B EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024

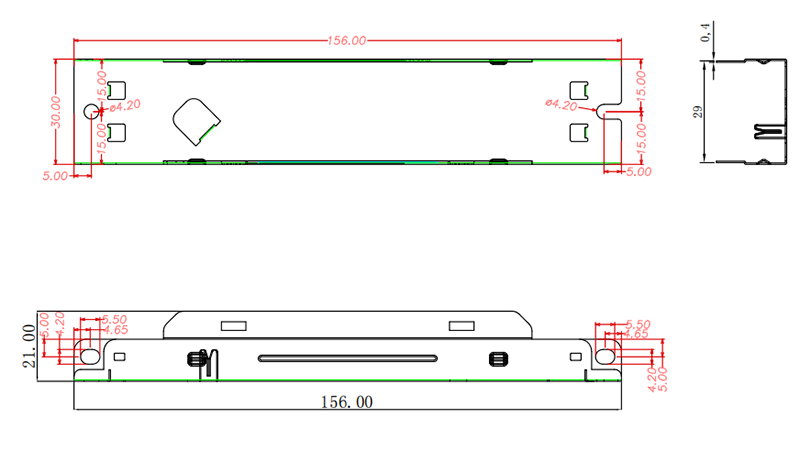

Size	Metal: 1563021mm (LWH)

■ Model List:

Model	Output voltage	Output current	Current tolerance	Efficiency	PF
AND-32W350A-G05	53-90V	260/290/320/350mA	±5%	≥89%	≥0.95
AND-45W350A-G05	65-130V	250/300/350/400mA	±5%	≥89%	≥0.95
AND-20W350A-G05	34-57V	200/250/300/350mA	±5%	≥89%	≥0.95
